OA Network Floor With Stringer

1.Fireproof class A、moistureproof、dustrpoof、corrosion prevention.
2.Adjustable height for pedestal (applied patent),assembly agility, large wire, good exchangeability

Send Inquiry

Description

1.Specification:

1.Fireproof class A、moistureproof、dustrpoof、corrosion prevention.

2.Adjustable height for pedestal (applied patent),assembly agility, large wire, good exchangeability

3.Outlet mating. Elegant appearance for paving wildly brand top tiles.

4.Solve traditional troubles of wire aged、short circuit etc caused by cement、brick、wood floor embedded the wires in advanced.

5.High recycled, convenient removing, saving cost, long performance life

6.Perfect sealing property for under-floor air-condition system

7.Corner Lock holes are optional for panel wilding accept kinds of covering tiles,carpet,PVC….

image001(001)

2.Structure:

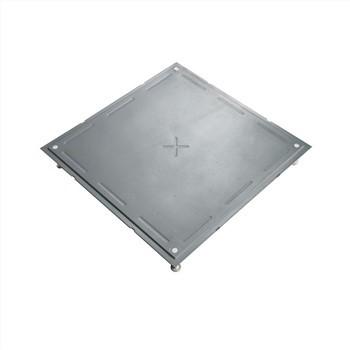

1.Panel-Cementitious infill welded die casing steel sheel, with or without coner lock hole in four corner, top tiles could be carpet,PVC tiles or other tiles as you like

2.Pedestal-flat top steel structure pedestal, height could be 80mm---1500mm

image003(001)

3.Application:

Wide range of the application such as 5 class office

Security Union Plaza ,Futures Trading Building, and the place demand cabling and wiring.And the aging building floor's reform

International	Size(mm)	Fire Performance	Concentrated load			Impact load (N)	Ultimated load (N)	Uniform Load (N/m²)	Rolling load(N)
International	Size(mm)	Fire Performance	LB	N	KG	Impact load (N)	Ultimated load (N)	Uniform Load (N/m²)	10 times	100000 times
FS440	600x600x30	A	≥440	≥1960	≥200	≥295	≥5880	≥9272	1958	1566
FS662	600x600x35	A	≥662	≥2950	≥301	≥445	≥8850	≥1250	2946	2356
FS800	600x600x35	A	≥800	≥3350	≥363	≥536	≥11250	≥16100	3560	2670
FS1000	600x600x35	A	≥1000	≥4550	≥450	≥670	≥13350	≥23000	4450	3560
FS1250	600x600x35	A	≥1250	≥5560	≥567	≥780	≥16680	≥33000	5560	4450
FS1500	600x600x35	A	≥1500	≥6675	≥670	≥1005	≥19892	≥34500	6675	5340
FS2000	600x600x35	A	≥2000	≥8900	≥906	≥1340	≥26700	≥46000	8900	8000
